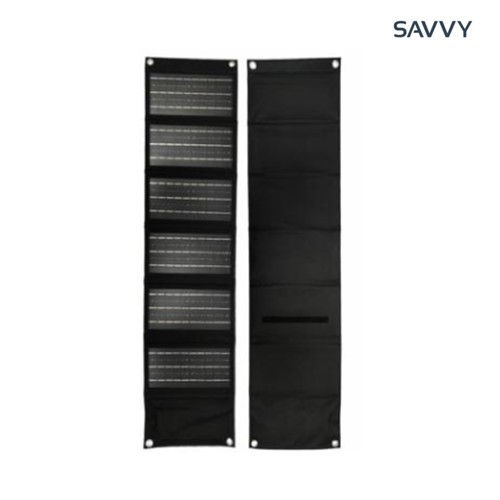

Panel type Single crystal 182
Rated power 22.5W
Open circuit voltage 6.6V
Short circuit current 4.5A
Working voltage 5.5V
Working current 4.09A
Surface material Frosted PET + Oxford cloth

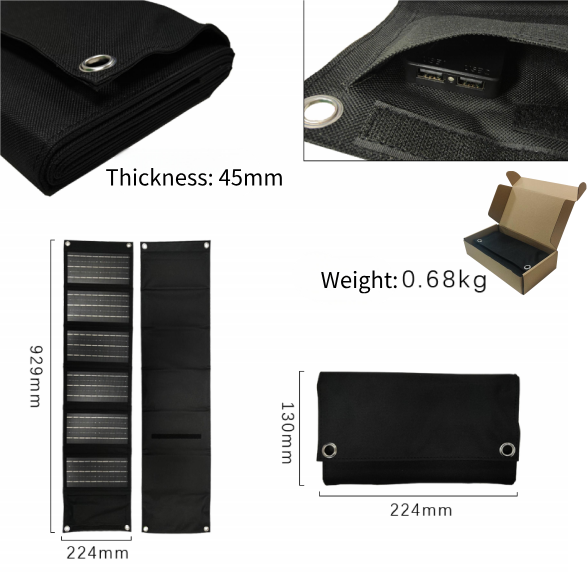

Expanded size 929*223mm
Folded size 223*123*35mm
Panel pieces 1*10*6
Junction Box Double USB
Cloth bag craft Fabric sewing
Cloth color Regular black, optional starry sky camouflage
| Panel type | Single crystal 182 | |||||
| Rated power | 22.5W | |||||
| Open circuit voltage | 6.6V | |||||
| Short circuit current | 4.5A | |||||
| Working voltage | 5.5V | |||||
| Working current | 4.09A | |||||
| Surface material | Frosted PET + Oxford cloth | |||||
| Expanded size | 929*223mm | |||||
| Folded size | 223*123*35mm | |||||
| Panel pieces | 1*10*6 | |||||
| Junction Box | Double USB | |||||
| Cloth bag craft | Fabric sewing | |||||
| Cloth color | Regular black, optional starry sky camouflage | |||||
| 1000PCS and above support customization | ||||||
| Base plate color | White | Black | ||||
| Craft box size (mm) | Quantity (pcs) | Weight (Kg) | ||||
| 250*135*55 | 1 | 0.77 | ||||
| Carton size (mm) | Quantity (pcs) | Weight (Kg) | ||||
