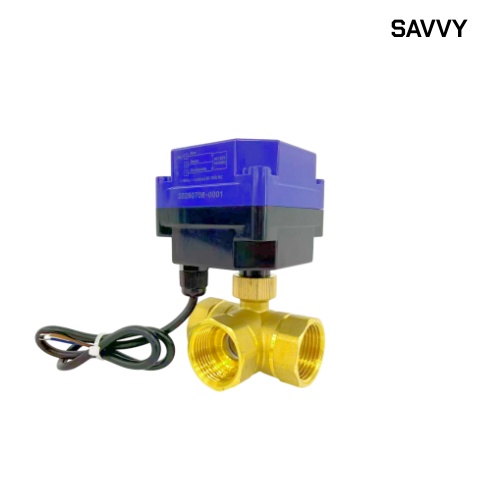

SV-Q25-3 Series Smart Electric Ball Valve

SV-Q25-3 Series Smart Electric Ball Valve

Smart Control · Energy Efficient · Easy Installation · Long Service Life

The SV-Q25-3 Series Smart Electric Ball Valve combines a high-quality ball valve body with a compact electric actuator, providing reliable and efficient flow control for HVAC, heating, floor heating, solar drainage, and other similar systems.

Driven by an AC bidirectional synchronous motor, the actuator rotates the ball valve 90° clockwise or counterclockwise for precise opening and closing. Built-in limit switches automatically cut off the motor power when the valve reaches the fully open or fully closed position, ensuring safe, energy-efficient, and reliable operation.

Key Features

• IP65 Protection – Excellent protection against dust and water ingress for dependable operation.

• Easy Installation – The actuator can be installed after equipment and pipelines are in place, significantly improving installation efficiency.

• Low Operating Noise – Smooth and quiet operation for comfortable use in residential and commercial environments.

• Energy Efficient & Durable – Optimized motor design ensures low energy consumption and a long service life.

• Space-Saving Design – The eccentric actuator design reduces installation space requirements and offers greater flexibility in confined areas.

• Automatic Limit Protection – Built-in limit switches stop the motor automatically when the valve is fully open or closed.

Applications

Ideal for a wide range of fluid control applications, including:

• HVAC systems

• Heating systems

• Floor heating systems

• Solar drainage systems

• Other similar water circulation and control systems

Working Conditions

• Rated Voltage: AC 220V, 50/60Hz

• Operating Ambient Temperature: 0°C to 60°C

• Relative Humidity: ≤85%

• Protection Class: IP65

Why Choose SV-Q25-3?

The SV-Q25-3 Series delivers a practical combination of reliable automatic control, low energy consumption, quiet operation, easy installation, and long-term durability, making it an ideal choice for modern HVAC and heating applications.
