Panel type Single crystal 210
Rated power 100W
Open circuit voltage 21.12V
Short circuit current 6.25A
Working voltage 17.6V
Working current 5.68A
Surface material Frosted PET + Oxford cloth

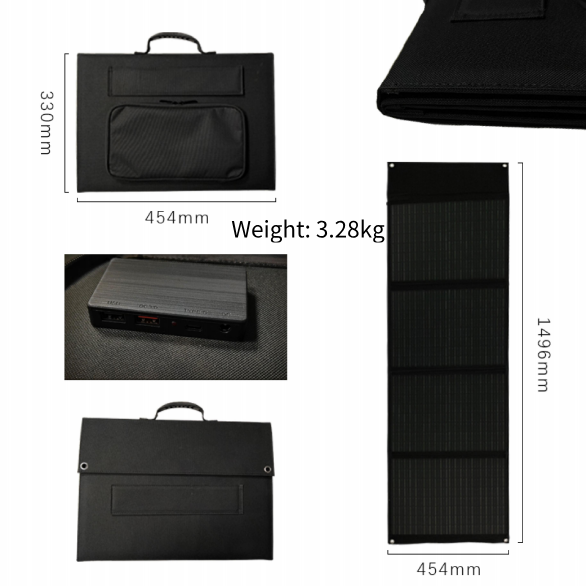

Expanded size 1496*453mm
Folded size 453*326*30mm
Panel pieces 2*8*4
Junction Box Double USB+TYPE C+DC5521
Cloth bag craft Fabric sewing
Cloth color Regular black, optional starry sky camouflage
| Panel type | Single crystal 210 | |||||
| Rated power | 100W | |||||
| Open circuit voltage | 21.12V | |||||
| Short circuit current | 6.25A | |||||
| Working voltage | 17.6V | |||||
| Working current | 5.68A | |||||
| Surface material | Frosted PET + Oxford cloth | |||||
| Expanded size | 1496*453mm | |||||
| Folded size | 453*326*30mm | |||||
| Panel pieces | 2*8*4 | |||||
| Junction Box | Double USB+TYPE C+DC5521 | |||||
| Cloth bag craft | Fabric sewing | |||||
| Cloth color | Regular black, optional starry sky camouflage | |||||
| 500PCS and above support customization | ||||||
| Base plate color | White | Black | ||||
| Craft box size (mm) | Quantity (pcs) | Weight (Kg) | ||||
| 470*350*60 | 1 | 3.98 | ||||
| Carton size (mm) | Quantity (pcs) | Weight (Kg) | ||||
| 490*270*370 | 4 | 17 | ||||
