3-WAY MOTORIZED BALL VALVES

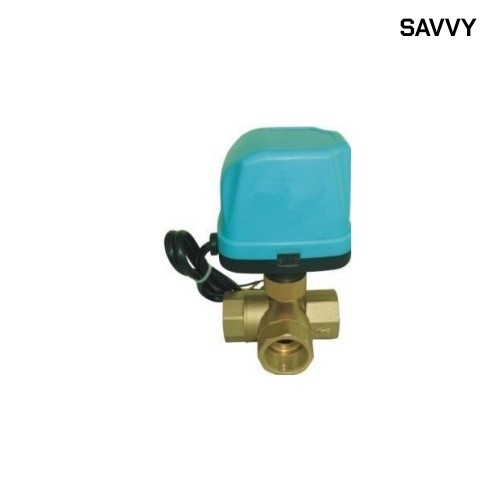

SV Series Motorized Valve

SV-3 is a 3-way motorized ball valves intended for use in heating and cooling system.Suitablefor hot and chilled water

Features

Smooth flow, no clog. Suitable for any specifications of fan coil unit. The power is cut off when the valve reaches the on/off position. This ensures long lifeservice for the actuator. The actuator cover adopts close structure which is resistive to humidity andensures reliable operation for motor

Models

SV-Q20-3 3-way,DN20(20mm)

SV-Q25-3 3-way,DN25(25mm)

Technical Datas

Medium:Water, 60% glycol

Valve Type: 3way

Working mode:24VAC or On/Off

Supply Voltage:220VAC,24VAC

Power: 6W/9WWorking time:15 seconds

Pressure:1.6MPa

Max .Pressure differ: 1.0MPa

Fluid temperature: 2℃~95℃

Valve body: Bronze

Protection Class:IP4
