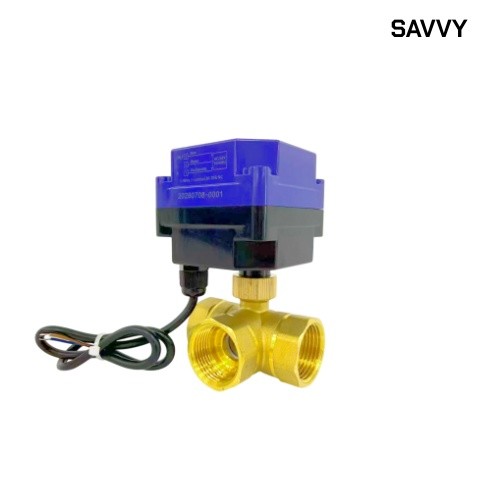

SV-Q25-3 smart electric ball valves

The SV-Q25-3 series consists of smart electric ball valves, each composed of a ball valve body and an actuator. The actuator drives the ball valve to rotate 90° clockwise and counterclockwise. Driven by an AC bidirectional synchronous motor, the actuator is equipped with built-in limit switches that cut off power supply to the motor when the valve is fully open or fully closed, delivering safe and energy-efficient operation.

Working Conditions

Rated voltage: AC220V, 50/60Hz for power supply.

Operating ambient temperature: 0℃ ~ 60℃, relative humidity not exceeding 85%.

Product Features

Protection class: IP65

The actuator can be mounted after equipment and pipelines are installed, greatly improving installation efficiency

Low operating noise

High energy efficiency and long service life

Eccentric actuator design saves installation space
