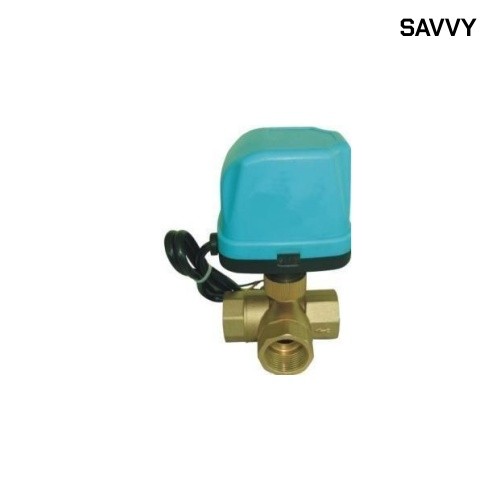

SV-Q20-3 3-WAY MOTORIZED BALL VALVES

SV Series Motorized Valve

SV-Q20-3 is a 3-way motorized ball valves intended for use in heating and cooling system.Suitablefor hot and chilled water

Size:

SV-Q20-3: 3-way,DN20(20mm)

Technical Datas

Medium:Water, 60% glycol

Valve Type: 3way

Working mode:24VAC or On/Off

Supply Voltage:220VAC,24VAC

Power: 6W/9WWorking time:15 seconds

Pressure:1.6MPa

Max .Pressure differ: 1.0MPa

Fluid temperature: 2℃~95℃

Valve body: Bronze

Protection Class:IP4

Features

Smooth flow, no clog. Suitable for any specifications of fan coil unit. The power is cut off when the valve reaches the on/off position. This ensures long lifeservice for the actuator. The actuator cover adopts close structure which is resistive to humidity andensures reliable operation for motor
